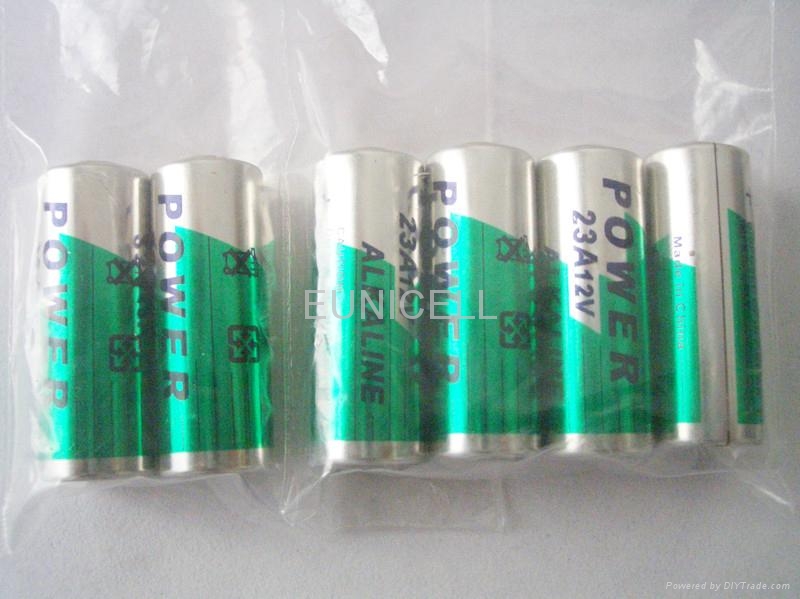

Super alkaline battery 12v 23A 60mAh
1.Excellent leakage resitance, long shelf life
2.5pcs or 10 pcs a blister pack
3.power battery
4.Can do differend brand
5.best customer service
6.capacity can be choosed
12V Alkaline A23 Battery datesheet as below:
1.Other name for the same type
L1028 23L VR22
2.Chemical System
Alkaline Zinc—Manganese battery (+) Zn|KOH|MnO2(-)
3.Nominal Voltage: 12V
4.Average Weight: 7.1 g
5.Nominal Capacity: 60mAh
(continuous discharge at 20±2°C under 0.10mA discharge current to 7.2V voltage)
6.Appearance:Metal Can
7.Electrical Characteristics:
7.1 Off—load Voltage:
New Battery≥12.10V
After 12 Months (Room Temp.)≥12.00V
7.2 Discharge Time(continuous discharge at 20±2°C under 20KΩ discharge load to 7.2V voltage)
New Battery≥80hours
After 12 Months (Room Temp.)≥72hours
7.3 Over—discharge Characteristic
Condition: 20KΩcontinuous discharge at 20±2°C&65±20%R.H.
Period: 48hours
Characteristic: No deformation is over 0.20mm of the nominal dimension,
and no visual electrolyte leakage.
